Details

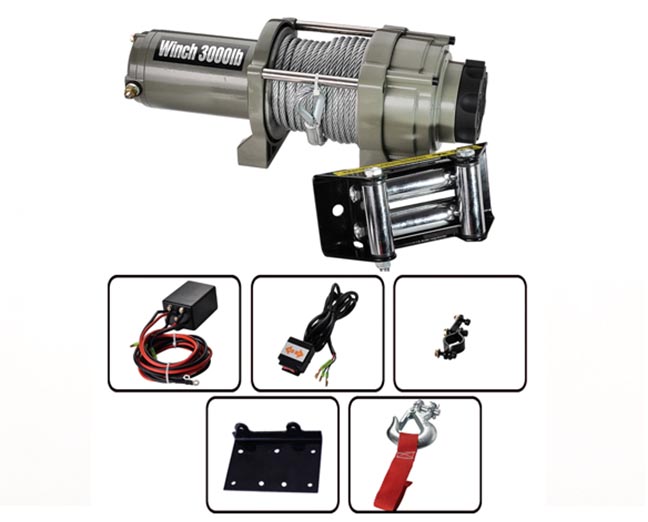

| Model | ATQ3000 |
| Rated Line Pull | Single Rope:3000lb(1361kg) single line |
| Motor | Permanent magnet motor 1.1kw/1.47hp 12V |
| Gear Reduction ratio | 126:1 |
| Drum Size(Dia.xL) | Φ1.47"x3.19"(Φ37.5mm x 81mm) |
| Rope Size(Dia.xL) | Φ7/32"x49"(Φ5.4mm x 15m ) |
| Mounting Bolt(Dia.xL) | Φ3"x4.9"(Φ76.2mm x 124m ) |
| Overall Dimension(LxWxH) | 330mm x 123mm x 128mm(13"x4.8"x5.0") |
| Packing size | 34X24x34cm 2PCS/CTN |
| Weight | 19 kg/21 kg |
Line Speed,Motor current and Line Pull(First Layer)12V
| Line Pull | lb | 0 | 1000 | 2000 | 3000 |
| kg | 0 | 454 | 907 | 1361 |
| Line Speed | ft/min | 10.2 | 8.6 | 5.6 | 3.3 |
| m/min | 3.1 | 2.6 | 1.7 | 1 |
| Motor | Amps | 12 | 35 | 70 | 130 |
Line Pull and Cable Capacity | Layers of cable | | 1 | 2 | 3 | 4 |
| Rated Line | lb | 3000 | 2300 | 1800 | 1300 |
| Pull per layer | kg | 1361 | 1043 | 816 | 590 |
| Cumulative | ft | 6.6 | 14.8 | 24.4 | 33.4 |
| Cable Capacity | m | 2.0 | 4.5 | 7.4 | 15 |
