Details
Product Introduce:

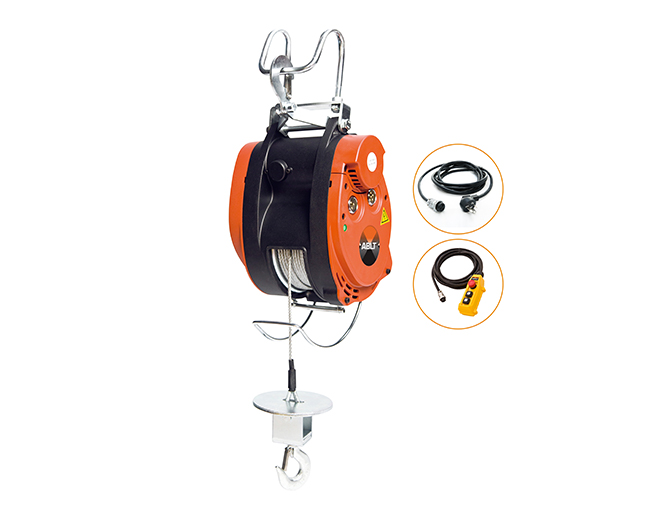

Suspending electric winch possesses such advantages as compact dimensions, high speed, long wire rope and portable design, which is easy to handle and assemble.
Product Features:
1.Temperature protection is designed to extend a longer service life.
2. Dual Brake system provides a double safey protection, safer and more reliable.
3.Automatic upper and lower limit switches.When rope comes into contact with limit arm, hoisting is automatically stopped.
4.High strength alloy galvanized wire rope make it durable and safter.
5. All Gears are made from high quality alloy steel, which possess very high surface hardness and long service life and operates in sealed oil bath.
6. Pendant control with wire length 5 Meters, Power lead with industrial plug wire length 3 Meters, as standard, it's easy to operate.
Application field:
The product is widely used in machinery, light industry, agriculture, warehouse, abattoir, lumbering, family hoisting and stage setting.
| Model | ATX-250A(Pendant Control) |
| Rated Load | 250kg |
| Wire Rope | Φ5mmx15m,20m,30m |
| Speed | 12m/min |
| Voltage | AC 220-240V 50/60HZ |
| Power Source | 1200W |
| Lift Height | 14m,19m,29m |
| Temperature Protection | YES |
| N.W/G.W | 19/20kg |
| Packing | 47.7*26.5*28cm |
