Details
Features:

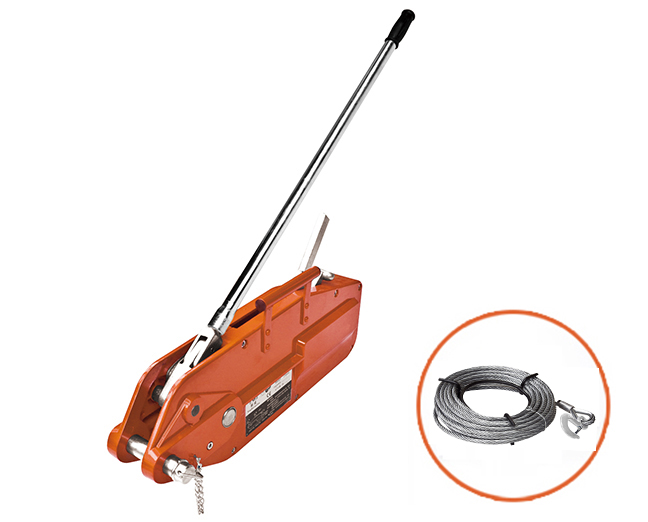

1 AIBOLIFTwire rope lever hoist features as rugged and portable design, which is exclusively used for heavy duty pulling operation, transmission lifting operation as well as long-distance dragging and tensioning operation.
2 Rated lifting capacityranges from 0.8 to 5.4 tons, with 20 meters of standard wire rope.
3 Smooth and steady operation and low wear—the dual clamping jaws with large surface area enables the grip to be evenly distributed to the wire rope, realizing smooth operation and low wear.
4 Wireless operation of wire ropeenables versatile long-distance applications.
5 Durability—Light weight and compact design allow portability and durability.
6 Overload protection—Safety pin is designed to avoid dangerous overloads and easy to change.
7 Telescopic polemakes it easier to handle and operate.
8 Minimal maintenance--Periodic cleaning, inspection and lubrication are all that are required.
| Model | ATQ-800B | ATQ-1600B | ATQ-3200B | ATQ-5400B | |
| Rated Capacity(kg) | 800 | 1600 | 3200 | 5400 | |
| Rated Forward Handpower(N) | 341 | 400 | 438 | 550 | |
| Rated Forward Travel(mm) (Swing it front andbackward) | ≧52 | ≧55 | ≧28 | ≧25 | |
| Rope Diameter(mm) | 8.3 | 11 | 16 | 20 | |
| Wire Rope Safety Factor Load Capacity | 5 | 5 | 5 | 5 | |
| Safety Factor & Static Load Capacity | 4 | 4 | 4 | 4 | |
| Max Travelling Load(kg) | 1200 | 2400 | 4800 | 6750 | |
| New Weight(kg) | 6.4 | 12 | 23 | 58 | |

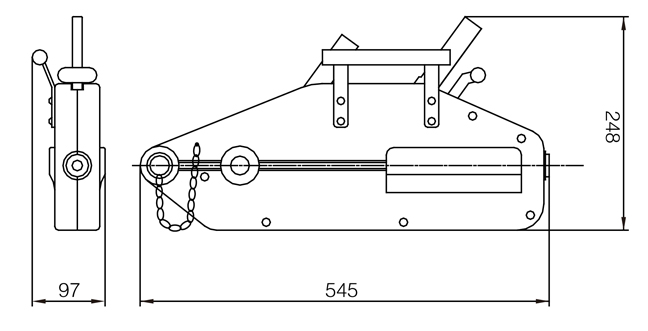

| Max Overall Size(mm) | A | 426 | 545 | 660 | 930 |
| B | 238 | 284 | 325 | 390 | |
| C | 64 | 97 | 116 | 150 | |
| L1(cm) | 692 | 692 | 692 | ||
| L2(cm) | 1200 | 1200 | 1200 | ||
| L3(cm) | 800 | ||||
