Details
Product Introduction:

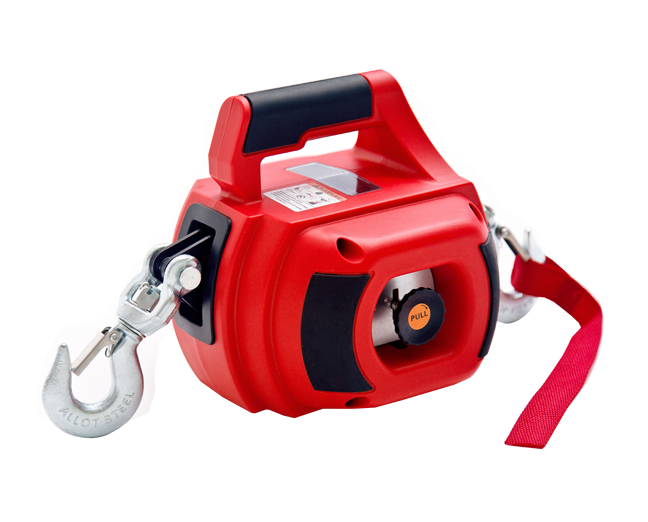

Portable mini winch is a universal pulling device, using a drill aspower source without relying on other power supply, which is more convenientand flexible to use. Lightweight and portable, with a 500lbs single-linepulling capacity, it’s also the perfect back seat solution for almost everyjob.
Product Features:
1.Portable and lightweight, plastic housing keeps fingers and hands wellclear of winding parts.
2.Powered by standard portable drill (not included).
3.A clear plastic window enable to monitor the cable as it iswound or unwound.
4. Free-spool clutch, swivel and fixed hooks make riggingfast and easy.
5.Variable line speed is dependent on the torque of the drillused.
6.Galvanized steel rope with integrated Hawse fairlead.
7.Self-locking gear train with dynamic braking.
Application field:
It is widely used in workshop, construction,boat, auto shops,garages, euqipment maintenance, forestry, farm and ranch use,hunt, etc.
Model | ATQ-500H |
Max.Capacity | 500lbs |
Wire Rope | Φ4mmx12m |
Motor | PoweredBy StandardDrill(Not Included) |
GearBox | Free-Spooling Clutch |

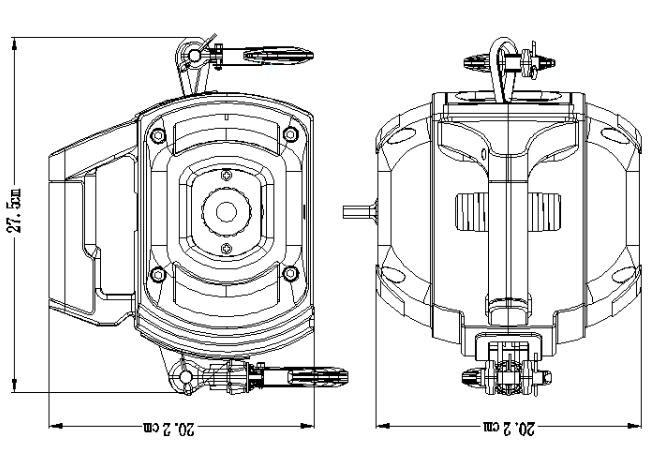

Product Dimension | 27.5x20x20.2cm |
N.W/G.W | 5.3/6.6kg |
Packing | 31*26.5*25.5cm |
