Details
| Model No.: | ATQ-150D | ATQ-300D | ATQ-500D | ATQ-1000D | ATQ-2000D |
| Capacity(kg) | 150 | 300 | 500 | 1000 | 2000 |
| Wire Rope Dia*L (mm) | Ø4×20 | Ø4×20 | Ø6.8×25 | Ø9×25 | Ø11×25 |
| Gear ratio | 2.842:1 | 6.67:1 | 7.75:1 | 23.75:1 | 43.7:1 |
| Number of layers | 6 | 6 | 4 | 4 | 3 |

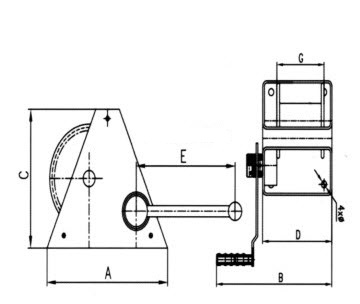

| A(mm) | 180 | 240 | 240 | 412 | 500 |
| B(mm) | 335 | 385 | 385 | 485 | 585 |
| C(mm) | 150 | 200 | 200 | 300 | 325 |
| D(mm) | 150 | 200 | 200 | 300 | 405 |
| E(mm) | 350 | 250 | 250 | 350 | 350 |
| Net Weight (kg) | 9.2 | 16 | 21.2 | 46.2 | 76.6 |
