Details

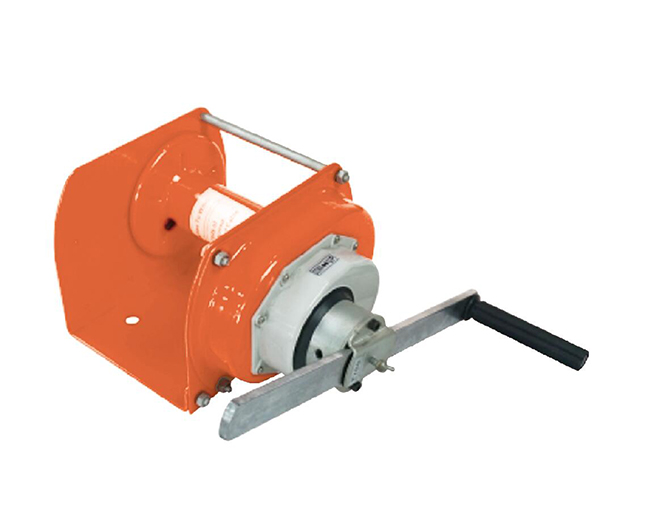

Product features:
1. All braking components are plated with a rust resistant finish.
2. A double-tipped brake pawl ensures that either tip is always engaged under all conditions.
3. Will not free wheel under load.
4. Non-asbestos brake disc using a high quality low abrasion aramid fibre material for safer and healthier environment.
5. Dust and weather-tight housing use an ABS plastic cover to seal out dust and rain.
6. Handle grip is designed to allow maximum comfort during winding.
7. Handle length is easy to adjust.
| Model | ATX-HE-0.5 | ATX-HE-1.0 | ATX-HE-2.0 | ATX-HE-3.0 | |
| Capacity(kg) | 500 | 1000 | 2000 | 3000 | |
| Testing Load(KN) | 6.125 | 12.25 | 24.5 | 36.75 | |
| Wire Rope(mmxm) | Φ6.5x10 | Φ8x10 | Φ9x10 | Φ12x10 | |
| Gear Ratio | 4.33:1 | 12.19:1 | 22.68:1 | 29.16:1 | |
| Min.force of hand turn(N) | 120 | 120 | 130 | 180 | |
| Net Weight(kg) | 14.4 | 19.7 | 25.1 | 44.3 | |
