Details
| Model | ATQ-250E | ATQ-500E | ATQ-1000E |
| Capacity(kg) | 250 | 500 | 1000 |
| Wire Rope Dia*L (mmxm) | Ø4×20 | Ø6.8×25 | Ø9×35 |
| Gear ratio | 15:1 | 21:1 | 26:1 |
| Number of layers | 4 | 4 | 4 |

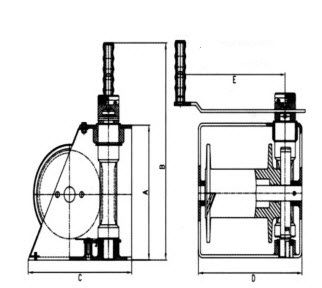

| A(mm) | 150 | 180 | 300 |
| B(mm) | 330 | 360 | 490 |
| C(mm) | 150 | 180 | 300 |
| D(mm) | 200 | 260 | 300 |
| E(mm) | 240 | 240 | 370 |
| Net Weight (kg) | 12.2kg | 19.7 | 40.4 |
